TM1637 & segment display

Description

The TM1637 is a popular integrated circuit used to control 7-segment displays and is often paired with a 4-digit 7-segment display. It’s commonly used in projects that require displaying numbers or simple characters. The TM1637 provides a simple interface to control the display using just two pins for communication: Data (DIO) and Clock (CLK). It uses a serial communication protocol to send data to the display, making it easier to interface with microcontrollers like Arduino.

Key Features of the TM1637:

• I2C-like communication: The TM1637 uses a two-wire communication system, similar to I2C, but it’s not exactly the same.
• Simple Interface: It only requires two GPIO pins (Data and Clock) for communication, which saves on the number of pins needed.
• Multiple Digits: It can control up to 4 digits of a 7-segment display, making it suitable for displaying numbers in various applications.
• Adjustable Brightness: The TM1637 supports controlling the brightness of the display, making it more flexible for different lighting conditions.
• Compatibility: The TM1637 is compatible with popular microcontrollers like Arduino and ESP32.

Connecting TM1637 to Arduino:

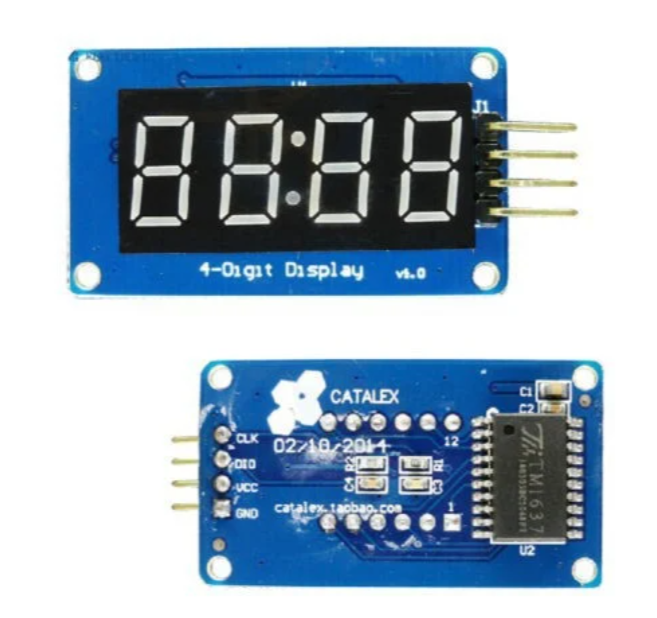

The TM1637 module typically has 4 pins:

• VCC: Connect to the 5V supply of the Arduino.
• GND: Connect to the ground.
• CLK: This is the clock pin, which goes to a digital pin on the Arduino (e.g., pin 2).
• DIO: This is the data pin, which goes to another digital pin on the Arduino (e.g., pin 3).
